General Information and Application Notes for our LED Products
Our goal is to develop high performance opto-devices necessary for applications such as transportation, automobile management systems (ITS, VICS, ETS, etc), medical, photo-therapy, agriculture and food, military, and security. We are willing to help customers develop their own products by designing and manufacturing appropriate custom opto-devices for many other applications.
L850F-09-55 for car Navigation Use and System to assist for pedestrian. L850-01UP and L850-04UP for VICS (Vehicle Information and Communication System) L850F-06-45 and L850F-06-55 for License Plate recognize (LPR) use. L810-06-55, L780-06-55 and L735-06-55 for ETC LED array use. L850-66-60 for Night Vision Light Source use.
L450-03U, L660-03U and L750-03AU for Plant growth and Photo synthetically Active Radiation (PAR) use.
SMT660/890, SMT660/910 and SMT660/940 for Oxymeter use. L670-04AU, L670-66-60 and L890-04AU for Photodynamic Therapy (PDT) and Diabetes use. L565-36U, L635-36AU and L760-36AU for Blood Sugar Level measurement use.
Infrared Wireless Communication fields
New Application fields
L375-66-60 for chemical reactor as reactive light source.
LED Wavelength and Application
We offer more than 60 standard peak wavelengths between 365 nm and 1650 nm. We also customize peak wavelength and wavelength tolerance in order to offer wavelength specifically tuned for your application. Some of peak wavelengths we offer that are proven to work for some applications are shown below.
(Click on the image to see an enlarged version.)

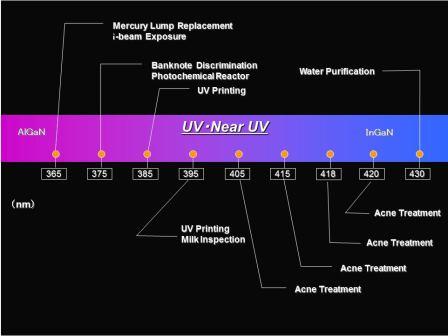

UV: 365 nm – 430 nm
Visible: 430 nm – 690 nm

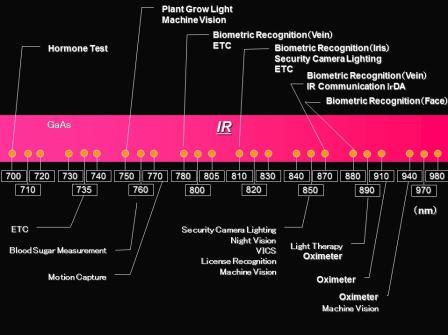

IR: 700 nm – 980 nm

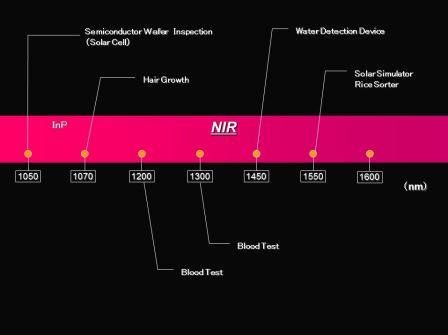

NIR: 1050 nm – 1600 nm
