8-in-1 Package

8-in-1 Package

The COB 8-in-1 Package (aka 8in1 or 8 in 1) — a multicolor chip-on-board (COB) LED that integrates eight emitters in one component.

    Loading...

    Loading...

    About the COB 8-in-1 Package

    COB 8-in-1 multicolor LED package

    Features

    • Up to 8 LED chips in a single package — free to choose any 8 wavelengths from the table below.
    • All 8 LEDs can be driven independently.
    • Compact footprint: 2.2 mm × 2.9 mm (0.9 mm height).
    • Lead frame die: ceramics. Lens: silicone resin.

    Download datasheet (PDF) →

    Eight LEDs in one compact footprint

    A single 8-in-1 package delivers up to eight emitters in a 2.2 × 2.9 mm footprint — replacing multiple discrete packages and saving board space without giving up channel count.

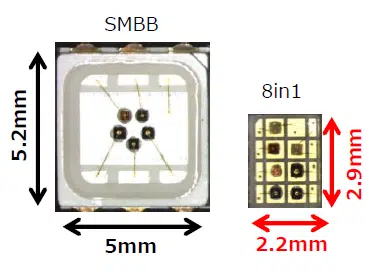

    8-in-1 package size compared with a standard SMBB package
    The 8-in-1 (2.2 × 2.9 mm) next to a standard SMBB package (5 × 5.2 mm).
    One 8-in-1 package replaces two SMT packages
    One 8-in-1 package in place of two 3.5 × 2.8 mm SMT packages.

    Available wavelengths

    Mix and match any 8 of the wavelengths below in one package, spanning UV, visible, near-infrared (NIR) and short-wave infrared (SWIR):

    UV (7)
    365nm375nm385nm395nm405nm415nm420nm
    Visible (20)
    430nm435nm450nm470nm490nm505nm520nm525nm545nm565nm570nm590nm600nm610nm620nm630nm640nm660nm670nm680nm
    NIR (24)
    690nm700nm710nm720nm730nm735nm740nm750nm760nm770nm780nm800nm810nm820nm830nm840nm850nm870nm880nm890nm910nm940nm970nm980nm
    SWIR (10)
    1050nm1100nm1150nm1200nm1300nm1380nm1450nm1550nm1650nm1900nm
