How Near Infrared LEDs Are Revolutionizing Medical Devices

Near-infrared LEDs in medical devices are quietly transforming patient care, from high-tech hospital equipment to everyday health monitors. These invisible wavelengths of light give medical designers new ways to sense and heal the human body without invasive procedures. As detailed in our Near-Infrared (NIR) LED Guide, a near-IR LED (also called an infrared diode) emits light just beyond visible red – penetrating tissue to enable novel healthcare electronics and biomedical sensors. In this article, we’ll break down why NIR LEDs matter, compare key specs (like 850 nm vs 940 nm devices), highlight breakthrough applications in medicine, and offer engineering tips for safe, effective designs.

From Hospitals to Wearables: Why NIR LEDs Matter

Invisible near-infrared light has become a game-changer across settings – from operating rooms to consumer wearables. In hospitals, NIR LEDs power critical systems such as pulse oximeters and imaging devices, enabling non-invasive monitoring that was once impossible. Their ability to emit light without heating or ionizing radiation means procedures can be safer and more comfortable for patients. In wearables, tiny NIR emitters now track vital signs (heart rate, oxygen levels) continuously, blending seamlessly into watches and fitness bands. These NIR emitters offer a unique combination of compact size, low power consumption, and deep tissue penetration. In short, near-IR LEDs provide doctors and product developers with an invisible light source that can “see” under the skin, stimulate biological processes, and integrate into portable devices – all at low cost. This versatility is why NIR LED technology is rapidly becoming a staple in modern medical and healthcare electronics.

Key Performance Specs of NIR LEDs (850 nm vs 940 nm)

Not all infrared LEDs are identical – two popular wavelengths are around 850 nm and 940 nm, each with distinct traits. Generally, an 850 nm LED can output roughly twice the radiant power of a 940 nm LED at the same drive current. The 850 nm devices also produce a faint red glow visible to the human eye, whereas 940 nm IR LEDs are completely invisible (which can be advantageous for covert or patient-friendly operation). Below is a comparison of key specs between representative 850 nm and 940 nm medical IR LEDs (for example, Tech-LED’s SMT850-25 (850 nm IR LED) vs. the effectiveness of blue light in certain treatments. SMT940-25 (940 nm IR LED)):

Parameter 850 nm IR LED 940 nm IR LED
Peak Wavelength 850 nm (near IR) 940 nm (near IR)
Typical Radiant Power @ 50 mA ~20 mW ~15 mW
Max Pulsed Output @ 100 mA ~44 mW ~30 mW (approx)
Human Eye Visibility Slight red glow (visible) No visible glow (completely infrared)

As shown above, the 850 nm class IR LED generally offers higher radiant output (but with a telltale red glimmer), while 940 nm sacrifices some intensity for true invisibility. Both types typically have forward voltages around ~1.2–1.5 V and are available in similar package styles (through-hole, SMD, with or without lenses). Choosing between them depends on the application’s needs: for instance, 940 nm is standard in pulse oximeters to differentiate oxygenated blood, whereas 850 nm might be preferred in camera-based systems for its stronger signal. In practice, many designers will evaluate both wavelengths for sensor performance and ambient lighting conditions before selecting a NIR LED for their medical device.

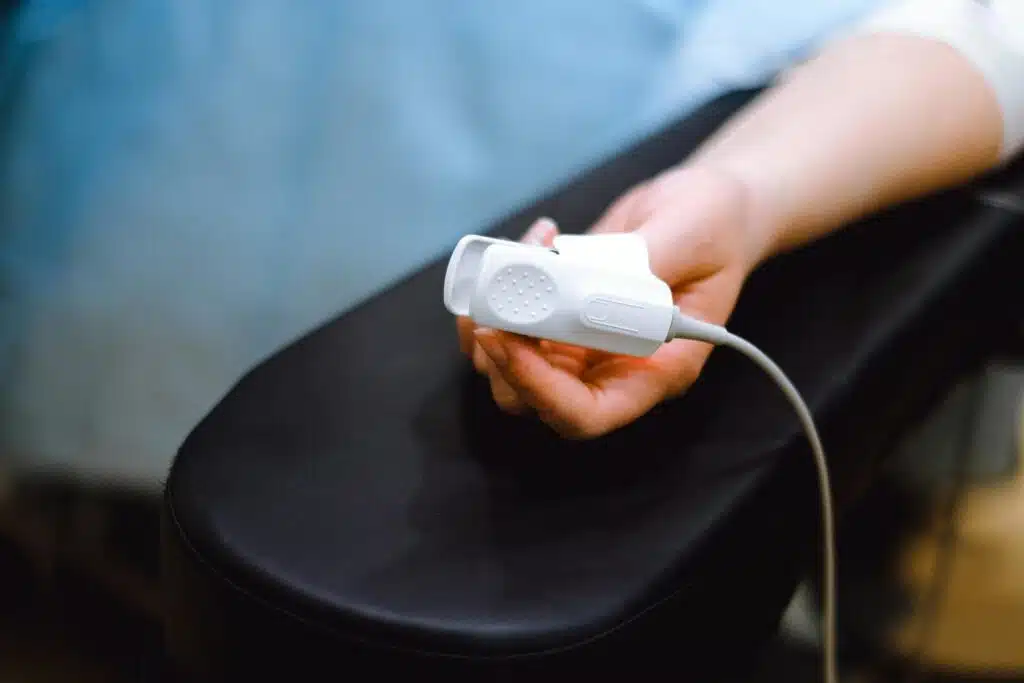

pulse oximeter

Breakthrough Applications of Near-Infrared LEDs in Medical Devices

From simple biomedical sensors to advanced diagnostic systems, near-infrared radiation LEDs are at the heart of many breakthrough medical device applications, including light-emitting diode therapies. Below are a few key areas where NIR LED technology is making a significant impact.

Pulse-Oximetry & Vital-Sign Sensors

One of the most ubiquitous uses of NIR LEDs is in the pulse oximeter – the fingertip clip that measures blood oxygen saturation. A standard unit shines two wavelengths of light through the finger: a red LED (~660 nm) and a near-IR LED (~940 nm). Oxyhemoglobin and deoxyhemoglobin absorb these wavelengths differently, so by detecting the light that passes through, the device can calculate oxygen levels in the blood. Typically, the near-IR LED is 940 nm because oxygenated blood absorbs more infrared light, while deoxygenated blood absorbs more red light. A photodiode sensor for NIR on the opposite side of the finger picks up the transmitted light, and the processor derives the SpO2 reading from the changing red/IR absorption ratio. Beyond hospital-grade pulse oximeters, similar near-infrared light-based led devices are being developed for various medical uses. vital sign sensors are now in smartwatches and fitness trackers, often measuring pulse or blood oxygen from the wrist. Some wearables even use multiple infrared diodes and detectors for advanced metrics like heart rate variability or blood pressure estimation. The takeaway: by leveraging invisible light, these biomedical sensors provide continuous, non-invasive monitoring of vital signs – a capability that has revolutionized patient care and personal health tracking.

Photobiomodulation & Therapy Devices

Near-infrared LEDs are also making waves in therapeutic devices through photobiomodulation (PBM) – the use of light to stimulate biological tissue. NIR light (typically 800–900 nm) penetrates several centimeters into skin and muscle, where it can enhance cellular energy production and reduce oxidative stress . This effect leads to accelerated healing and reduced inflammation. For example, high-intensity red and near-infrared LED arrays developed with NASA funding significantly sped up the healing of oxygen-deprived wounds and improved musculoskeletal injury recovery in trials. In one study, animals exposed to 880 nm LED therapy showed a >40% improvement in muscle injury healing compared to controls. Such findings have led to a new class of LED therapy products – from handheld pain-relief devices to full-body light beds – aimed at treating arthritis, muscle soreness, wounds, and even depression. Unlike high-power medical lasers, LED-based PBM devices are lower cost, generate minimal heat, and can safely illuminate broader areas of tissue. Clinical evidence is growing; one review concluded that low-level red/near-IR light is a safe and effective treatment for skin rejuvenation, wound healing, and other conditions . As a result, the FDA has cleared certain NIR LED therapy devices for indications like temporary relief of pain and improved circulation. Photobiomodulation is an exciting application where near-IR emitters are literally helping the body heal itself with light, showcasing the potential of led devices in therapeutic contexts.

Imaging & Vein-Visualization Systems

NIR LEDs are also used to “see” inside the body in ways conventional light cannot. A prime example is vein finders – devices that project near-infrared light onto the skin to map sub-surface veins for easier IV access, demonstrating the utility of LED light in clinical settings.. Hemoglobin in blood absorbs infrared light while surrounding tissue reflects it, so veins appear as dark lines when viewed with an IR-sensitive camera. The device then projects a real-time image of the veins back onto the patient’s skin, effectively highlighting where veins are located. Many modern vein visualizers (such as AccuVein and VeinViewer) use NIR wavelengths around 850 nm, which offers a good balance of penetration depth and camera sensitivity. These tools can reveal veins up to about 10 mm deep and significantly improve first-stick success rates in patients – particularly children or others with difficult venous access. Beyond vein finders, near-infrared LEDs are employed in various imaging contexts: for instance, in surgical visualization systems where NIR light and special dyes (like indocyanine green) help surgeons see blood flow or lymph nodes during operations. Night-vision cameras in medical settings (e.g. patient monitoring in darkness) also rely on 850 nm IR LED illumination. In all these cases, NIR LEDs provide illumination that is invisible to the naked eye but illuminating to sensors – enabling new imaging modalities that enhance diagnosis and guidance without adding patient risk.

Engineering Considerations for Medical OEMs

Designing devices with near-infrared LEDs requires careful attention to a few technical factors to ensure optimal performance and longevity. Below is a checklist of engineering considerations for OEMs integrating these infrared diodes into medical products:

  • Drive Current & Pulsing: Determine the appropriate forward drive current and driving method (constant current, PWM, etc.) for your NIR LED. Most IR emitters have a max continuous current (e.g. 50–100 mA) and a higher peak pulsed current (often 5–10× higher for short pulses). Pulsing an LED (with low duty cycle) can yield higher peak output for sensing without overheating. Ensure your driver circuit respects the LED’s datasheet limits to avoid premature failure.
  • Thermal Management: Even though IR LEDs are efficient, they still dissipate heat. Excess junction temperature can reduce the LED’s radiant output and shift its wavelength. Use proper heat sinking or thermal vias for high-power LEDs, and consider duty cycle limits if using pulses. Designing for worst-case ambient temperatures will ensure the device stays within safe operating area during continuous use.
  • Optical Design (Beam & Detection): Tailor the LED’s optics to your application. Many IR LEDs come in packages with integrated lenses – for example, the SMT850-25 has a built-in lens to focus its output. A narrow beam might be ideal for long-range sensing or illumination (as in imaging devices), whereas a wide dispersion is better for close proximity sensors. Likewise, if pairing the LED with a photodiode detector (e.g. in a pulse oximeter or reflective heart-rate sensor), consider using optical filters and modulation techniques to minimize ambient light interference from blue light.
  • Photodiode Selection & Sync: In sensor applications, choose a photodiode or phototransistor that has high sensitivity at the LED’s wavelength (~850–950 nm). Many silicon photodiodes have a responsiveness peak around 900 nm, which aligns well with these LEDs. Synchronize the LED emission and detector reading (for example, alternate LED on/off and sample the detector in sync) to improve signal-to-noise. Also, physically shield the detector from direct LED crosstalk where applicable to ensure accurate measurements in light therapy devices.
  • Reliability & Lifespan: Use medical-grade or industrial-grade NIR LEDs that offer high reliability (typical lifetimes 50,000+ hours). Verify that the LED package can withstand any sterilization processes if your device will be autoclaved or chemically cleaned. It’s wise to derate the LED (run below max ratings) for critical devices to ensure long-term stability. Also account for slight output degradation over time – infrared LEDs can dim a little after thousands of hours, so build in calibration or margin if precision is required over the device’s life.
  • Regulatory Compliance: Ensure the NIR LED usage meets medical device safety standards. For electrical and EMC compliance, that means adhering to IEC 60601-X requirements (general and particular standards). Optically, very high-output near-infrared radiation illumination may need to be classified per laser safety standards (see next section on eye safety), especially in light therapy devices that utilize red LEDs. Design your circuits with proper isolation, filtering, and consider adding redundant emitters or self-test features if a failed LED could impact patient safety (for example, some SpO2 monitors check that the LED and detector are functioning properly).
  • Consult Datasheets & Support: Always consult the LED’s datasheet for detailed specifications – radiant intensity curves, maximum ratings, and recommended soldering/handling guidelines. You can find these on our Datasheet PDF library (e.g., 850 nm and 940 nm emitter datasheets). Additionally, engage with the LED manufacturer for design-in support; for instance, Tech-LED can advise on custom emitters or optical configurations to meet unique medical application needs. Taking advantage of supplier expertise and documentation will save development time and help avoid pitfalls.

Regulatory & Eye-Safety Checklist

Because near-infrared light is invisible, special care must be taken to ensure patient and user safety. Ironically, “invisible” IR can pose a greater eye hazard than visible light at the same power – the human blink reflex is not triggered, so the retina can be exposed to focused IR without any warning sensation . High-power IR LEDs or lasers can cause retinal burns or even cataracts with sufficient exposure, despite the user not seeing anything. For this reason, international safety standards treat many IR LEDs with the same caution as lasers. For example, IEC 60825-1 (laser safety) historically classified LEDs by hazard class; most small infrared LEDs fall into Class 1 (eye-safe under all conditions), but clustered arrays or powerful IR emitters can reach Class 1M or higher, requiring warnings if viewed with optical instruments. Today, the newer IEC 62471 “photobiological safety” standard is applied to LED-based lamps, and it similarly places high-output NIR devices into risk groups that dictate labeling and exposure limits. Medical device makers should also be aware of IEC 60601-2-57, a standard specific to light-based medical equipment. The FDA recognizes IEC 60601-2-57 as the consensus standard for optical radiation safety in non-laser devices , and compliance with it (and its risk classifications) is often a prerequisite for device approval. In short, engineering with NIR LEDs means designing for safety from the start. The following checklist highlights key eye-safety practices:

  • Never look into active NIR LEDs up close: Even if an IR LED appears dim or off, avoid staring directly into it at close range. Your eyes won’t perceive the infrared, but the energy could still be focusing on your retina and causing damage.
  • Use IR viewing tools for testing: When working with infrared emitters, use an IR detection card or an IR-sensitive camera (even a smartphone camera can sometimes see bright 850 nm as a faint purple light) to verify if the LED is on. Do not rely on your eyes or assume it’s off due to lack of visible glow.
  • Enclose and shield high-power sources: If your device uses a high-power NIR LED or an array, include physical barriers or diffusers so that end-users cannot easily access or stare into the bare emitters. For example, enclose the LEDs behind a filter window or use covers that only allow the intended illumination to exit.
  • Design to Class 1 limits for consumer products: For any medical device intended for home or consumer use, aim to keep the accessible IR output within Class 1 exposure limits (as defined by IEC 60825-1/IEC 62471). This typically ensures the device is eye-safe under all conditions. If more power is needed (Class 1M or 2M), implement safety measures and clear warnings in the instructions.
  • Treat IR like laser when power scales up: If your product involves extremely high-power IR illumination (for example, an IR lamp for whole-body therapy or a long-range illuminator), treat it with the same precautions as you would a laser system. That might include requiring users/operators to wear appropriate IR safety goggles that look clear but block NIR wavelengths , and implementing interlocks or timers to avoid accidental exposure.
  • Follow standards and test accordingly: Ensure your device is evaluated per the relevant standards (IEC 60825-1 for laser classification, IEC 62471 for lamp safety, and IEC 60601-2-57 for medical light equipment). Document the classification of your product’s IR emission (Exempt, RG1, Class 1, etc.), and include required user warnings or labeling if it falls into higher risk categories. Conducting an optical hazard assessment and maintaining compliance documentation will be crucial for regulatory approval.

Case Study: Accelerating FDA Approval with SMT850-25

To illustrate the above principles, consider a medical device OEM developing a new multi-parameter patient monitor that required a built-in pulse oximetry module. The team’s goal was to fast-track their FDA 510(k) clearance. By choosing Tech-LED’s SMT850-25 (850 nm IR LED) as the emitter in their SpO2 subsystem, they gained several advantages that sped up the approval process. First, the SMT850-25 came with comprehensive documentation – including detailed spectral output and safety testing data – which the engineers leveraged in their regulatory submission. The LED’s output was high enough that the design could meet performance targets at modest drive currents, keeping the infrared exposure within Class 1 eye-safe limits. This meant the device did not require additional safety interlocks or complex hazard labeling, simplifying the regulatory checklist. Second, Tech-LED’s support team provided an “850 nm & 940 nm datasheet pack” with integration notes, helping the OEM quickly optimize the LED drive circuit and pass IEC 60601 electrical safety tests on the first try. When it came time for premarket review, the FDA was already familiar with the IEC standards the SMT850-25 complies with, and the submission referenced those consensus standards for optical safety. The result: the pulse oximetry module cleared testing with minimal iterations, and the overall monitor device earned FDA clearance ahead of schedule. In essence, using a proven, well-documented NIR LED component reduced the development risk and regulatory uncertainty. This case underscores how partnering with a knowledgeable supplier and selecting the right component can accelerate time-to-market – a critical advantage in the competitive medical device industry.

Future Trends: VCSELs, Multi-Wavelength Packages & AI Diagnostics

The revolution in near-infrared LED technology is ongoing. Looking ahead, several emerging trends promise to further enhance what medical devices can do, particularly through the use of led light therapy and near-infrared radiation.

  • VCSELs for Precision Sensing: VCSELs (vertical-cavity surface-emitting lasers) are a type of infrared light source that offers laser-like coherence in a tiny LED-sized package. Already used in smartphones for Face ID and LiDAR, VCSEL arrays are making their way into medical applications. For example, VCSEL-based pulse oximetry and heart-rate sensors could improve accuracy by producing more focused, stable light outputs than conventional LEDs. VCSELs can also be modulated at high frequencies, enabling advanced techniques like time-of-flight distance sensing or high-speed imaging in optical coherence tomography. Their small size and efficiency make them attractive for wearables and implantable sensors. In the coming years, we may see near-IR VCSELs enabling new kinds of diagnostic tools that require precise, collimated light – essentially blurring the line between “LED” and “laser” in medical devices.
  • Multi-Wavelength LED Packages: Another trend is the integration of multiple wavelengths in a single compact package or module. Instead of using separate LEDs for red, infrared, and other bands, manufacturers are creating multi-chip LED packages (or even monolithic multi-color LEDs) tailored for medical sensing. In pulse oximeters, for instance, next-gen sensors might house red, 660 nm and IR 940 nm dies under one lens for a perfectly aligned emission. Some wearable health monitors already combine green, red, and IR LEDs with a photodiode in one module to measure everything from heart rate to blood oxygen and hydration. For therapy devices, multi-wavelength arrays (e.g. 660 nm + 850 nm) are used to target different tissue depths and photobiological effects simultaneously. These integrated solutions save space and ensure consistent geometry, which improves sensor calibration and simplifies device assembly. Multi-wavelength NIR LED packages will likely become standard in applications that benefit from broad-spectrum illumination or dual-parameter measurements.
  • AI-Driven Diagnostics with NIR Data: As the use of NIR LEDs in devices grows, so does the volume of data gathered from the human body – and this is where artificial intelligence comes in. Machine learning algorithms are increasingly being applied to interpret signals obtained via near-infrared light. For example, AI can analyze the subtle waveforms from photoplethysmography (PPG) sensors (which use IR light) to detect arrhythmias or predict cardiovascular issues beyond a simple pulse count. In medical imaging, AI-driven software can take NIR images (such as vein maps or tissue oxygenation maps) and highlight anomalies or guide interventions in real-time. We’re also seeing research into using NIR spectroscopy readings and AI to non-invasively monitor blood glucose or tissue ischemia by recognizing complex optical signatures. Essentially, near-infrared LEDs provide a rich stream of physiological data, and AI tools are unlocking new diagnostic value from that data. The combination of advanced NIR hardware and smart algorithms could enable earlier detection of diseases and more personalized medicine, all via light-based, non-contact sensors.

In summary, near-infrared LED technology continues to evolve rapidly. We can expect future medical devices to leverage these trends – using more precise VCSEL emitters, packing multiple wavelengths into tiny sensors, and harnessing AI to make sense of it all. The ultimate goal remains the same: to improve patient outcomes and healthcare efficiency by using light in ingenious ways.

What are near-infrared LEDs and how do they work in medical devices?

Near-infrared LEDs, or light-emitting diodes operating in the near-infrared spectrum, are utilized in various medical devices to deliver light therapy. These LEDs emit specific wavelengths of light that can penetrate the skin and tissues, promoting healing and reducing inflammation. The therapy system leverages the beneficial effects of near-infrared light to stimulate cellular processes, enhancing the healing of wounds and potentially aiding in pain relief.

How is near-infrared light used in light therapy devices?

Light therapy devices that utilize near-infrared light are designed to deliver controlled levels of irradiance to targeted areas of the body. This exposure can activate cellular functions that lead to improved tissue repair and regeneration. Medical light therapy employing near-infrared wavelengths, such as 660nm and 630nm, is being researched for its clinical applications, including treatment for chronic pain, skin conditions, and even cancer cell therapies.

What are the clinical trials involving near-infrared light therapy?

Clinical trials investigating near-infrared light therapy have shown promising results in various therapeutic areas. The National Institutes of Health has supported research exploring its efficacy in treating conditions such as wound healing, inflammation, and cancer cell growth. These studies often evaluate the intensity and duration of light exposure, as well as the safety and effectiveness of LED systems in clinical settings.

What is the significance of light wavelengths in therapy systems?

The specific wavelengths of light emitted by near-infrared LEDs play a critical role in their effectiveness. Different wavelengths can penetrate the skin and tissues to varying depths, influencing how effectively they can stimulate cellular responses. For example, wavelengths like 660nm are commonly used for superficial conditions, while longer wavelengths can penetrate deeper into the body, making them suitable for treating deeper tissue issues.

Can near-infrared LEDs penetrate the skin effectively?

Yes, near-infrared LEDs can penetrate the skin effectively due to the properties of infrared radiation. The light absorption characteristics of different tissues allow near-infrared light to reach deeper layers, which can enhance the therapeutic effects. This capability is particularly beneficial in treatments for pain management and tissue repair, as the light penetrates deeper into the body and promotes biological processes that facilitate healing.

What are the benefits of using near-infrared light in medical devices?

Near-infrared light has several benefits when used in medical devices, including its ability to stimulate healing processes, reduce inflammation, and improve blood circulation. The therapeutic effects are often enhanced by the use of light-emitting diodes, which provide consistent and adjustable irradiation levels. Additionally, the non-invasive nature of near-infrared light therapy makes it an appealing option for patients seeking alternatives to traditional treatments such as radiation therapy.

How do handheld devices utilize near-infrared LEDs?

Handheld devices that utilize near-infrared LEDs are designed for personal use and targeted treatments. These devices allow patients to apply light therapy conveniently at home, focusing on specific problem areas. The portability and ease of use of these devices make them a popular choice for individuals seeking to manage chronic pain, enhance wound healing, or improve skin conditions through the therapeutic benefits of near-infrared light.

What role do NASA scientists play in researching near-infrared LEDs?

NASA scientists have contributed to the research and development of near-infrared LEDs, focusing on their applications in health and medicine. Their work often explores the effects of infrared radiation on human physiology, particularly in the context of long-duration space missions where maintaining astronaut health is critical. The insights gained from these studies can advance the understanding of light therapy and its potential benefits in various medical applications.

Conclusion & Next Steps

Near-infrared LEDs are truly revolutionizing medical devices, particularly in the field of light therapy. They have enabled doctors to monitor vital signs without needles, helped therapists heal injuries with light instead of drugs, and given engineers new tools to visualize the human body. By choosing the right wavelength (850 nm vs 940 nm) and following best practices for design and safety, product developers can unlock the full potential of this technology. As we’ve seen, today’s NIR LED components are robust and integration-ready – and tomorrow’s will be even more powerful with advances like VCSELs and AI-enhanced diagnostics. For readers eager to dive deeper, be sure to check out our comprehensive Near-Infrared (NIR) LED Guide which covers additional technical details and use cases. If you’re considering using NIR LEDs in your next project, explore Tech-LED’s product offerings (including the 850 nm and 940 nm series mentioned) and their associated datasheets. And of course, we invite you to explore the benefits of phototherapy. contact our team for expert guidance or custom solutions. By taking these next steps, you can join the growing number of innovators who are harnessing near-infrared light to advance healthcare – one device at a time.
