IR & NIR LED

IR & NIR LED

IR & NIR LEDs – High-Efficiency Infrared LED Solutions (700 nm – 1050 nm)

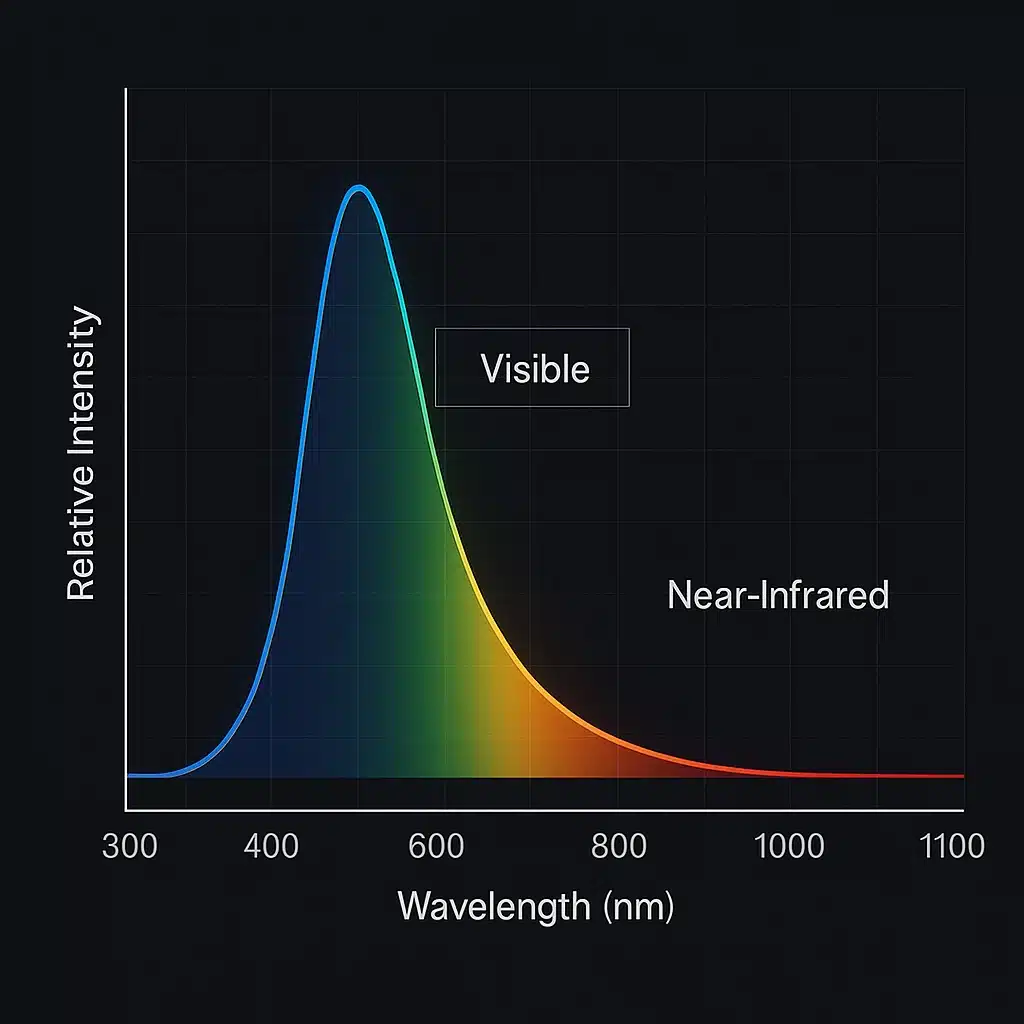

Near-infrared LEDs (often shortened to NIR LEDs) and IR LEDs emit light just beyond the red edge of the visible spectrum, where the eye’s sensitivity falls off steeply (some wavelengths still show a faint red glow). The CIE divides infrared radiation into three bands:

Band Wavelength Common use cases
IR-A (near-infrared) 780 – 1400 nm Night-vision, biometric cameras, pulse oximetry, sensing
IR-B 1400 – 3000 nm Fiber-optic links, moisture sensing (see our SWIR LED line)
IR-C 3 µm – 1 mm Thermal imaging

The IR & NIR LEDs in the catalog cover 700 to 1050 nm: the far-red edge (700–780 nm) and the shorter-wavelength part of IR-A. Wavelengths from 1050 to 1900 nm are on our SWIR LED page.
(Sunlight at sea level delivers ~527 W/m2 of infrared energy—proof of IR’s power and prevalence.)

Why Choose These Near-Infrared LEDs?

  • High radiant output – Up to 6 W in compact SMBB and EDC packages.
  • Tight wavelength bins – 730 nm, 780 nm, 810 nm, 850 nm, 940 nm ± 5 nm for repeatable sensor design.
  • Thermal paths that scale – Ceramic SMBB for board-level designs; TO-66 arrays for flood illuminators.

Applications for Infrared & NIR LEDs

  • Security cameras & facial-recognition floodlights
  • Medical pulse-oximetry & photobiomodulation therapy
  • LiDAR / time-of-flight ranging
  • Plastic & moisture sorting in industrial automation

For wavelengths above 1000 nm—including 1050 nm, 1300 nm and 1550 nm - please visit our SWIR LED page.

EDC

Product # Discontinued? Datasheet Wavelength (nm) Package Type Package Size Forward IF(mA) Current Total Radiated Power Po(mW) Viewing HalfAngleΘ1/2 (degree)
EDC1050GD-1100-S5 No 1050 SMD 3.5mm x 3.5mm 1000 750 39

SMBB

Product # Discontinued? Datasheet Wavelength (nm) Package Type Package Size Forward IF(mA) Current Total Radiated Power Po(mW) Viewing HalfAngleΘ1/2 (degree)
SMBB1050GD-1100 No 1050 SMD 5mm x 5mm 1000 700 64
SMBB1050GD-1100-05 No 1050 SMD 5mm x 5mm 1000 750 44
SMBB1050GD-1100-03 No 1050 SMD 5mm x 5mm 1000 750 23
SMBB1050GD-1100-02 No 1050 SMD 5mm x 5mm 1000 750 10
SMBB1050S-1100-02NRND No 1050 SMD 5mm x 5mm 500 52 10
SMBB1200S-1100NRND No 1200 SMD 5mm x 5mm 500 50 68
SMBB1200S-1100-02NRND No 1200 SMD 5mm x 5mm 500 50 9
SMBB1200S-1100-05NRND No 1200 SMD 5mm x 5mm 500 50 53
SMBB1300S-1100NRND No 1300 SMD 5mm x 5mm 500 45 68
SMBB1300S-1100-02NRND No 1300 SMD 5mm x 5mm 500 45 10
SMBB1450S-1100NRND No 1450 SMD 5mm x 5mm 500 25 67
SMBB1550S-1100NRND No 1550 SMD 5mm x 5mm 500 20 68
SMBB1550S-1100-02NRND No 1550 SMD 5mm x 5mm 500 20 10
SMBB1650S-1100NRND No 1650 SMD 5mm x 5mm 500 16 68
SMBB870D-1100 No 870 SMD 5mm x 5mm 1000 650 65
SMBB830D-1100 No 830 SMD 5mm x 5mm 1000 700 64
SMBB830D-1100-02 No 830 SMD 5mm x 5mm 1000 700 9
SMBB830D-1100-03 No 830 SMD 5mm x 5mm 1000 700 23
SMBB830D-1100-05 No 830 SMD 5mm x 5mm 1000 700 44
SMBB850D-1100 No 850 SMD 5mm x 5mm 1000 780 65
SMBB880D-1100 No 880 SMD 5mm x 5mm 1000 750 65
SMBB880D-1100-02 No 880 SMD 5mm x 5mm 800 610 9
SMBB880D-1100-05 No 880 SMD 5mm x 5mm 1000 750 44
SMBB880D-1100-03 No 880 SMD 5mm x 5mm 800 610 23
SMBB970D-1100 No 970 SMD 5mm x 5mm 1000 780 65

NRND: Not Recommended for New Design

SMT

Product # Discontinued? Datasheet Wavelength (nm) Package Type Package Size Forward IF(mA) Current Total Radiated Power Po(mW) Viewing HalfAngleΘ1/2 (degree)
SMT890D No 890 SMD 3.5mm x 2.8mm 50 25 62
SMT735D No 745 SMD 3.5mm x 2.8mm 50 35 61
SMT880D No 890 SMD 3.5mm x 2.8mm 50 28 62
SMT850D-S1 No 850 SMD 3.5mm x 2.8mm 50 26 8
SMT850N-S1NRND No 850 SMD 3.5mm x 2.8mm 50 26 10*
SMT940D-29 No 940 SMD 3.5mm x 2.8mm 50 30 46
SMT940D-27 No 940 SMD 3.5mm x 2.8mm 50 30 35
SMT940D-25 No 940 SMD 3.5mm x 2.8mm 50 30 20*
SMT1050GD-29 No 1050 SMD 3.5mm x 2.8mm 50 30 43
SMT1050GD-25 No 1050 SMD 3.5mm x 2.8mm 50 30 26
SMT1070D No 1070 SMD 3.5mm x 2.8mm 50 10 61
SMT1300S-S1NRND No 1300 SMD 3.5mm x 2.8mm 50 9 12
SMT1450S-S1NRND No 1450 SMD 3.5mm x 2.8mm 50 4.8 10
SMT1550S No 1550 SMD 3.5mm x 2.8mm 50 2.7 65
SMT1550S-S1NRND No 1550 SMD 3.5mm x 2.8mm 50 3 9
SMT1650S-23NRND No 1650 SMD 3.5mm x 2.8mm 50 2 20
SMT1650S-S1NRND No 1650 SMD 3.5mm x 2.8mm 50 2 10*
SMT1650S No 1650 SMD 3.5mm x 2.8mm 50 1.7 64
SMT720-S1 No 720 SMD 3.5mm x 2.8mm 20 7 10*
SMT720-29 No 720 SMD 3.5mm x 2.8mm 20 7 45*
SMT720-27 No 720 SMD 3.5mm x 2.8mm 20 7 29*
SMT720-25 No 720 SMD 3.5mm x 2.8mm 20 7 20*
SMT720-23 No 720 SMD 3.5mm x 2.8mm 20 7 16*
SMT700-S1 No 700 SMD 3.5mm x 2.8mm 20 5.5 10*
SMT700-29 No 700 SMD 3.5mm x 2.8mm 20 5.5 45*
SMT700-27 No 700 SMD 3.5mm x 2.8mm 20 5.5 29*
SMT700-25 No 700 SMD 3.5mm x 2.8mm 20 5.5 20*
SMT700-23 No 700 SMD 3.5mm x 2.8mm 20 5.5 17
SMT700 No 700 SMD 3.5mm x 2.8mm 20 5.5 63
SMT700D No 700 SMD 3.5mm x 2.8mm 50 40 62
SMT720 No 720 SMD 3.5mm x 2.8mm 20 7 64
SMT720D No 720 SMD 3.5mm x 2.8mm 50 38 62
SMT735-S1 No 735 SMD 3.5mm x 2.8mm 50 25 10*
SMT735-29 No 735 SMD 3.5mm x 2.8mm 50 25 45*
SMT735-27 No 735 SMD 3.5mm x 2.8mm 50 25 29*
SMT735-25 No 735 SMD 3.5mm x 2.8mm 50 25 20*
SMT735-23 No 735 SMD 3.5mm x 2.8mm 50 25 14
SMT735 No 735 SMD 3.5mm x 2.8mm 50 25 63
SMT735D-S1 No 735 SMD 3.5mm x 2.8mm 50 35 8
SMT740 No 740 SMD 3.5mm x 2.8mm 50 27 63
SMT740D No 740 SMD 3.5mm x 2.8mm 50 38 62
SMT750 No 750 SMD 3.5mm x 2.8mm 50 25 63
SMT750D No 750 SMD 3.5mm x 2.8mm 50 40 62
SMT750-23 No 750 SMD 3.5mm x 2.8mm 50 25 14
SMT750-25 No 750 SMD 3.5mm x 2.8mm 50 20 20
SMT750-S1 No 750 SMD 3.5mm x 2.8mm 50 25 10*
SMT750-29 No 750 SMD 3.5mm x 2.8mm 50 25 45*
SMT750-27 No 750 SMD 3.5mm x 2.8mm 50 20 28
SMT760 No 760 SMD 3.5mm x 2.8mm 50 27 63
SMT770D No 770 SMD 3.5mm x 2.8mm 50 35 61
SMT760D No 760 SMD 3.5mm x 2.8mm 50 35 61
SMT760-S1 No 760 SMD 3.5mm x 2.8mm 50 27 10*
SMT760-27 No 760 SMD 3.5mm x 2.8mm 50 27 29*
SMT760-25 No 760 SMD 3.5mm x 2.8mm 50 27 20*
SMT760-23 No 760 SMD 3.5mm x 2.8mm 50 27 16*
SMT760-29 No 760 SMD 3.5mm x 2.8mm 50 27 43
SMT770-S1 No 770 SMD 3.5mm x 2.8mm 50 26 10*
SMT770-29 No 770 SMD 3.5mm x 2.8mm 50 26 45*
SMT770-27 No 770 SMD 3.5mm x 2.8mm 50 26 29*
SMT770-25 No 770 SMD 3.5mm x 2.8mm 50 26 20*
SMT770-23 No 770 SMD 3.5mm x 2.8mm 50 26 16*
SMT770 No 770 SMD 3.5mm x 2.8mm 50 26 63
SMT780 No 780 SMD 3.5mm x 2.8mm 50 24 63
SMT780-23 No 780 SMD 3.5mm x 2.8mm 50 24 18
SMT780-25 No 780 SMD 3.5mm x 2.8mm 50 24 22
SMT780-27 No 780 SMD 3.5mm x 2.8mm 50 24 27
SMT780-29 No 780 SMD 3.5mm x 2.8mm 50 24 42
SMT830N No 830 SMD 3.5mm x 2.8mm 50 25 64
SMT840 No 840 SMD 3.5mm x 2.8mm 50 26 62
SMT840D No 840 SMD 3.5mm x 2.8mm 50 28 64
SMT850D-29 No 850 SMD 3.5mm x 2.8mm 50 26 45*
SMT810D-S1 No 810 SMD 3.5mm x 2.8mm 50 25 8
SMT810D-22 No 810 SMD 3.5mm x 2.8mm 50 25 12
SMT850D-25 No 850 SMD 3.5mm x 2.8mm 50 26 20*
SMT850D-27 No 850 SMD 3.5mm x 2.8mm 50 26 29*
SMT850D No 850 SMD 3.5mm x 2.8mm 50 26 61
SMT850D-22 No 850 SMD 3.5mm x 2.8mm 50 26 13
SMT850D-23 No 850 SMD 3.5mm x 2.8mm 50 26 18
SMT850N No 850 SMD 3.5mm x 2.8mm 50 28 63
SMT850N-23NRND No 850 SMD 3.5mm x 2.8mm 50 28 13
SMT850N-27NRND No 850 SMD 3.5mm x 2.8mm 50 28 35
SMT850N-25NRND No 850 SMD 3.5mm x 2.8mm 50 28 20
SMT850N-29NRND No 850 SMD 3.5mm x 2.8mm 50 28 45
SMT870-23NRND No 870 SMD 3.5mm x 2.8mm 50 28 14
SMT870N-S1NRND No 870 SMD 3.5mm x 2.8mm 50 28 10*
SMT870N-29NRND No 870 SMD 3.5mm x 2.8mm 50 28 45*
SMT870N-27NRND No 870 SMD 3.5mm x 2.8mm 50 28 26
SMT870N-25NRND No 870 SMD 3.5mm x 2.8mm 50 28 22
SMT870N-23NRND No 870 SMD 3.5mm x 2.8mm 50 28 14
SMT870N No 870 SMD 3.5mm x 2.8mm 50 28 63
SMT870D-S1 No 870 SMD 3.5mm x 2.8mm 50 30 8
SMT880-S1NRND No 880 SMD 3.5mm x 2.8mm 50 25 10*
SMT880-29NRND No 880 SMD 3.5mm x 2.8mm 50 25 45*
SMT880-27NRND No 880 SMD 3.5mm x 2.8mm 50 25 26
SMT880-25NRND No 880 SMD 3.5mm x 2.8mm 50 25 22
SMT880-23NRND No 880 SMD 3.5mm x 2.8mm 50 25 13
SMT880 No 880 SMD 3.5mm x 2.8mm 50 25 63
SMT890-S1 No 890 SMD 3.5mm x 2.8mm 50 15 10*
SMT890-29 No 890 SMD 3.5mm x 2.8mm 50 15 45*
SMT890-27 No 890 SMD 3.5mm x 2.8mm 50 15 29*
SMT890-25 No 890 SMD 3.5mm x 2.8mm 50 15 20*
SMT890-23 No 890 SMD 3.5mm x 2.8mm 50 15 13
SMT890 No 890 SMD 3.5mm x 2.8mm 50 15 63
SMT910-S1 No 910 SMD 3.5mm x 2.8mm 50 13 10*
SMT910-29 No 910 SMD 3.5mm x 2.8mm 50 13 45*
SMT910-27 No 910 SMD 3.5mm x 2.8mm 50 13 29*
SMT910-25 No 910 SMD 3.5mm x 2.8mm 50 13 20*
SMT910-23 No 910 SMD 3.5mm x 2.8mm 50 13 16*
SMT910 No 910 SMD 3.5mm x 2.8mm 50 13 63
SMT940 No 940 SMD 3.5mm x 2.8mm 50 15 64
SMT940-23 No 940 SMD 3.5mm x 2.8mm 50 15 20
SMT940-S1 No 940 SMD 3.5mm x 2.8mm 50 15 10
SMT940-29 No 940 SMD 3.5mm x 2.8mm 50 15 46
SMT940-27 No 940 SMD 3.5mm x 2.8mm 50 15 35
SMT940-25 No 940 SMD 3.5mm x 2.8mm 50 17 23
SMT940D No 940 SMD 3.5mm x 2.8mm 50 30 61
SMT940D-23 No 940 SMD 3.5mm x 2.8mm 50 30 20
SMT940D-S1 No 940 SMD 3.5mm x 2.8mm 50 30 8
SMT970-25 No 970 SMD 3.5mm x 2.8mm 50 7 26
SMT970-27 No 970 SMD 3.5mm x 2.8mm 50 7 35
SMT970-S1 No 970 SMD 3.5mm x 2.8mm 50 7 10
SMT970 No 970 SMD 3.5mm x 2.8mm 50 7 64
SMT970-23 No 970 SMD 3.5mm x 2.8mm 50 6 12
SMT970-25 No 970 SMD 3.5mm x 2.8mm 50 6 26
SMT970-29 No 970 SMD 3.5mm x 2.8mm 50 7 49
SMT970D No 970 SMD 3.5mm x 2.8mm 50 28 62
SMT970D-S1 No 970 SMD 3.5mm x 2.8mm 50 30 10*
SMT970D-29 No 970 SMD 3.5mm x 2.8mm 50 30 45*
SMT970D-27 No 970 SMD 3.5mm x 2.8mm 50 30 29*
SMT970D-25 No 970 SMD 3.5mm x 2.8mm 50 30 20*
SMT970D-23 No 970 SMD 3.5mm x 2.8mm 50 30 20
SMT980D-S1 No 980 SMD 3.5mm x 2.8mm 50 30 10*
SMT980D-29 No 980 SMD 3.5mm x 2.8mm 50 30 45*
SMT980D-27 No 980 SMD 3.5mm x 2.8mm 50 30 29*
SMT980D-25 No 980 SMD 3.5mm x 2.8mm 50 30 20*
SMT980D-23 No 980 SMD 3.5mm x 2.8mm 50 30 16*
SMT980D-22 No 980 SMD 3.5mm x 2.8mm 50 30 12
SMT980D No 980 SMD 3.5mm x 2.8mm 50 30 62

NRND: Not Recommended for New Design

Through-Hole

Product # Discontinued? Datasheet Wavelength (nm) Package Type Package Size Forward IF(mA) Current Total Radiated Power Po(mW) Viewing HalfAngleΘ1/2 (degree) Package Diameter
L1200S-01 No 1200 Mold Φ5mm 50 9.2 10*
L1200S-02 No 1200 Mold Φ5mm 50 9 8*
L1200S-04 No 1200 Mold Φ5mm 50 9.2 17*
L1200S-05NRND No 1200 Mold Φ5mm 50 9 44*
L1200S-06 No 1200 Mold Φ5mm 50 9.2 4*
L1200S-09 No 1200 Mold Φ5mm 50 9.2 10_21*
L1200D-33 No 1200 mold Φ3mm 50 10 16
L1200S-34 No 1200 Mold Φ3mm 50 9.2 -
L1200S-31NRND No 1200 Mold Φ3mm 50 9.2 -
L1200S-33 No 1200 mold Φ3mm 50 9.2 23
L1200S-36 No 1200 mold Φ3mm 50 9.2 35
L1200S-03 No 1200 mold Φ5mm 50 9.2 14
L1200S-33 No 1200 mold Φ3mm 50 9.2 23
L1300S-01 No 1300 mold Φ5mm 50 9 13
L1300S-02 No 1300 mold Φ5mm 50 9 10
L1300S-04 No 1300 mold Φ5mm 50 9 21
L1300S-05NRND No 1300 mold Φ5mm 50 9 35
L1300S-06 No 1300 mold Φ5mm 50 9 9
L1300S-09 No 1300 Mold Φ5mm 50 9 10_21*
L1300S-33 No 1300 mold Φ3mm 50 9 23
L1300S-36 No 1300 mold Φ3mm 50 9 34
L1300S-03 No 1300 mold Φ5mm 50 9 13
L1300S-31NRND No 1300 Mold Φ3mm 50 9 -
L1450S-01 No 1450 Mold Φ5mm 50 4 10*
L1450S-02 No 1450 Mold Φ5mm 50 4 8*
L1450S-03 No 1450 mold Φ5mm 50 4.8 14
L1450S-04 No 1450 Mold Φ5mm 50 4 17*
L1450S-05NRND No 1450 Mold Φ5mm 50 4 37
L1450S-06 No 1450 mold Φ5mm 50 4.8 9
L1450S-09 No 1450 Mold Φ5mm 50 4 4*
L1450S-33 No 1450 mold Φ3mm 50 4.8 23
L1450S-34 No 1450 Mold Φ3mm 50 4.8 -
L1450S-36 No 1450 mold Φ3mm 50 4.8 35
L1550D-01 No 1550 Mold Φ5mm 50 4.3 11
L1550D-02 No 1550 Mold Φ5mm 50 4.3 3
L1550D-03 No 1550 Mold Φ5mm 50 4.3 14
L1550D-04 No 1550 MOLD Φ5mm 50 4.3 10
L1550D-05NRND No 1550 Mold Φ5mm 50 3.7 40
L1550D-06 No 1550 Mold Φ5mm 50 4.3 3
L1550D-09 No 1550 Mold Φ5mm 50 4.3 14_28
L1550D-34 No 1550 Mold Φ3mm 50 4.3 7
L1550D-31NRND No 1550 Mold Φ3mm 50 3.7 26
L1550D-33 No 1550 Mold Φ3mm 50 4.3 20
L1550D-36 No 1550 Mold Φ3mm 50 4.3 58
L1550S-01 No 1550 mold Φ5mm 50 3.8 16
L1550S-02 No 1550 mold Φ5mm 50 3.8 9
L1550S-03 No 1550 mold Φ5mm 50 3.8 13
L1550S-04 No 1550 mold Φ5mm 50 3.8 24
L1550S-05NRND No 1550 mold Φ5mm 50 3.8 35
L1550S-06 No 1550 mold Φ5mm 50 3.8 9
L1550S-33 No 1550 mold Φ3mm 50 3.8 22
L1550S-36 No 1550 mold Φ3mm 50 3.8 36
L1650D-01 No 1650 Mold Φ5mm 50 2.3 11
L1650D-02 No 1650 Mold Φ5mm 50 2.3 3
L1650D-03 No 1650 Mold Φ5mm 50 2.3 14
L1650D-05NRND No 1650 Mold Φ5mm 50 2 40
L1650D-06 No 1650 Mold Φ5mm 50 2.3 3
L1650D-33 No 1650 Mold Φ3mm 50 2.3 20
L1650D-36 No 1650 Mold Φ3mm 50 2.3 58
L1650S-03 No 1650 mold Φ5mm 50 2.3 12
L1650S-36 No 1650 mold Φ3mm 50 2.3 33
L680-01AUNRND No 680 Mold Φ5mm 20 5 10
L680-02AUNRND No 680 Mold Φ5mm 20 5.8 3
L680-03AUNRND No 680 Mold Φ5mm 20 5.8 9
L680-04AUNRND No 680 Mold Φ5mm 20 8 12
L680-05AUNRND No 680 Mold Φ5mm 20 5.8 44*
L680-06AUNRND No 680 Mold Φ5mm 20 8 7
L680-09AUNRND No 680 Mold Φ5mm 20 5.8 10_21*
L680-33AUNRND No 680 Mold Φ3mm 20 5.8 16
L680-36AUNRND No 680 Mold Φ3mm 20 5.8 19
L700-01AU No 700 Mold Φ5mm 20 5.5 10 5
L700-02AU No 700 Mold Φ5mm 20 5.5 8 5
L700-03AU No 700 Mold Φ5mm 20 5.5 9 5
L700-04AU No 700 Mold Φ5mm 20 5.5 16 5
L700-05AUNRND No 700 Mold Φ5mm 50 14 40 5
L700-06AU No 700 Mold Φ5mm 20 5.5 4 5
L700-09AU No 700 Mold Φ5mm 20 5.5 10_21* 5
L700-33AU No 700 Mold Φ3mm 20 5.5 19 3
L700-36AU No 700 Mold Φ3mm 20 5.5 23 3
L710-33AUNRND No 710 Mold Φ3mm 20 6 16 5
L710-04AUNRND No 710 Mold Φ5mm 20 6 16 5
L710-03AUNRND No 710 Mold Φ5mm 20 6 10 5
L710-01AUNRND No 710 Mold Φ5mm 20 6 9 5
L720-01AU No 720 mold Φ5mm 20 7 9 5
L720-02AU No 720 Mold Φ5mm 20 7 3 5
L720-03AU No 720 Mold Φ5mm 20 7 9 5
L720-04AU No 720 Mold Φ5mm 20 7 13 5
L720-05AUNRND No 720 Mold Φ5mm 20 7 44* 5
L720-06AU No 720 Mold Φ5mm 50 22 7 5
L720-09AU No 720 Mold Φ5mm 20 7 10_21* 5
L720-33AU No 720 Mold Φ3mm 20 7 20 3
L720-36AU No 720 Mold Φ3mm 20 7 23 3
L735-01AU No 735 Mold Φ5mm 50 25 10 5
L735-02AU No 735 Mold Φ5mm 50 25 8 5
L735-03AU No 735 Mold Φ5mm 50 100 8 5
L735-04AU No 735 Mold Φ5mm 50 42 19 5
L735-05AUNRND No 735 Mold Φ5mm 50 25 46 5
L735D-05 No 735 Mold Φ5mm 50 30 42 5
L735-06-55 No 735 Mold Φ5mm - - -
L735-06AU No 735 Mold Φ5mm 50 25 6 5
L735-09AU No 735 Mold Φ5mm 50 25 10_21* 5
L735-33AU No 735 Mold Φ3mm 50 40 15 3
L735-36AU No 735 Mold Φ3mm 50 32 23 3
L740-02AU No 740 Mold Φ5mm 50 27 7 5
L740-03AU No 740 Mold Φ5mm 50 27 10 5
L740-05AUNRND No 740 Mold Φ5mm 50 27 44* 5
L740-06AU No 740 Mold Φ5mm 50 27 6 5
L740-09AU No 740 Mold Φ5mm 50 27 10_21* 5
L740-33AU No 740 Mold Φ3mm 50 27 18 3
L740-36AU No 740 Mold Φ3mm 50 27 28 3
L750-01AU No 750 Mold Φ5mm 50 25 11 5
L750-02AU No 750 Mold Φ5mm 50 25 7 5
L750-03AU No 750 Mold Φ5mm 50 18 15 5
L750-05AUNRND No 750 Mold Φ5mm 50 23 47 5
L750-06AU No 750 Mold Φ5mm 50 25 9 5
L750-31AUNRND No 750 Mold Φ3mm 50 23 43 3
L750-33AU No 750 Mold Φ3mm 50 23 17 3
L750-36AU No 750 Mold Φ3mm 50 25 25 3
L760-01AU No 1100 Mold Φ5mm 50 24 8 5
L760D-03 No 760 Mold Φ5mm 50 35 12 5
L760-02AU No 760 Mold Φ5mm 50 27 4 5
L760-03AU No 760 Mold Φ5mm 50 27 10 5
L760-04AU No 760 Mold Φ5mm 50 27 25 5
L760-05AUNRND No 760 Mold Φ5mm 50 18 44 5
L760-09AU No 760 Mold Φ5mm 50 27 10_21* 5
L760-33AU No 760 Mold Φ3mm 50 27 18 3
L760D-33 No 760 Mold Φ3mm 50 35 15 3
L760-36AU No 760 Mold Φ3mm 50 27 26 3
L760D-36 No 760 Mold Φ3mm 50 35 46 3
L770-01AU No 770 Mold Φ5mm 50 26 11 5
L770-02AU No 770 Mold Φ5mm 50 26 8 5
L770-03AU No 770 Mold Φ5mm 50 26 10 5
L770-04AU No 770 Mold Φ5mm 50 25 17 5
L770-05AUNRND No 770 Mold Φ5mm 50 26 44* 5
L770-06AU No 770 Mold Φ5mm 50 26 7 5
L770-09AU No 770 Mold Φ5mm 50 26 10_21* 5
L770-33AU No 770 Mold Φ3mm 50 26 18 3
L770-36AU No 770 Mold Φ3mm 50 26 30 3
L780D-09 No 780 Mold Φ5mm 50 35 26_16
L780-02AU No 780 Mold Φ5mm 50 24 9 5
L780-03AU No 780 Mold Φ5mm 50 24 10 5
L780-04AU No 780 Mold Φ5mm 50 28 17 5
L780-05AUNRND No 780 Mold Φ5mm - - -
L780-06AU No 780 Mold Φ5mm 50 24 8 5
L780-09AU No 780 Mold Φ5mm 50 28 Long:23 Short:11
L780-33AU No 780 Mold Φ3mm 50 24 18 3
L780-36AU No 780 Mold Φ3mm 50 24 28 3
L800-01AU No 800 Mold Φ5mm 50 27 8 5
L800-02AU No 800 Mold Φ5mm 50 27 7 5
L800-03AU No 800 Mold Φ5mm 50 27 10 5
L800-04AU No 800 Mold Φ5mm 50 27 16 5
L800-05AUNRND No 800 Mold Φ5mm 50 22 44 5
L800-06AU No 800 Mold Φ5mm 50 27 4 5
L800-09AU No 800 Mold Φ5mm 50 27 10_21* 5
L800-33AU No 800 Mold Φ3mm 50 27 18 3
L800-36AU No 800 Mold Φ3mm 50 - 28
L805-01AU No 805 Mold Φ5mm 50 25 10* 5
L805-02AU No 805 Mold Φ5mm 50 25 8* 5
L805-04AU No 805 Mold Φ5mm 50 27 16 5
L810-01AU No 810 Mold Φ5mm 50 27 8 5
L810-02AU No 810 Mold Φ5mm 50 27 7 5
L810-03AU No 810 Mold Φ5mm 50 18 15 5
L810-04AU No 810 Mold Φ5mm 50 27 16 5
L810-05AUNRND No 810 Mold Φ5mm 50 20 48 5
L810-06AU No 810 Mold Φ5mm 50 27 8 5
L810-09AU No 810 Mold Φ5mm 50 24 10_21* 5
L810-33AU No 810 Mold Φ3mm 50 22 18 3
L810-36AU No 810 Mold Φ3mm 50 24 29 3
L810D-33 No 810 Mold Φ3mm 50 25   3
L810D-36 No 810 Mold Φ3mm 50 25 52 3
L820-01AUNRND No 820 Mold Φ5mm 50 25 10 5
L820-02AUNRND No 820 Mold Φ5mm 50 25 7 5
L820-03AUNRND No 820 Mold Φ5mm 50 25 10 5
L820-04AUNRND No 820 Mold Φ5mm 50 25 17 5
L820-05AUNRND No 820 Mold Φ5mm 50 25 44* 5
L820-06AUNRND No 820 Mold Φ5mm 50 25 4* 5
L820-09AUNRND No 820 Mold Φ5mm 50 25 10_21* 5
L820-33AUNRND No 820 Mold Φ3mm 50 25 17 3
L820-36AUNRND No 820 Mold Φ3mm 50 25 26 3
L830-01AU No 830 Mold Φ5mm 50 18 10 5
L830-02AU No 830 Mold Φ5mm 50 27 4 5
L830-03AU No 830 Mold Φ5mm 50 27 10 5
L830-03UPNRND No 830 Mold Φ5mm 50 23 10 5
L830-04AU No 830 Mold Φ5mm 50 27 19 5
L830-04UPNRND No 830 Mold Φ5mm 50 24 19 5
L830-05AUNRND No 830 Mold Φ5mm 50 20 48 5
L830-05UPNRND No 830 Mold Φ5mm 50 22 44 5
L830-06AU No 830 Mold Φ5mm 50 27 4* 5
L830-09AU No 830 Mold Φ5mm 50 28 10_21* 5
L830-33AU No 830 Mold Φ3mm 50 27 18 3
L830-33UPNRND No 830 Mold Φ3mm 50 25 20 3
L830-36AU No 830 Mold Φ3mm 50 27 34 3
L830-36UPNRND No 830 Mold Φ3mm 50 25 30 3
L840-01AU No 840 Mold Φ5mm 50 18 10 5
L840-02AU No 840 Mold Φ5mm 50 26 8* 5
L840-03AU No 840 Mold Φ5mm 50 26 10* 5
L840-04AU No 840 Mold Φ5mm 50 20 20 5
L840-05AUNRND No 840 Mold Φ5mm 50 26 44* 5
L840-06AU No 840 Mold Φ5mm 50 26 4* 5
L840-09AU No 840 Mold Φ5mm 50 26 10_21* 5
L840-33AU No 840 Mold Φ3mm 50 26 17* 3
L840-36AU No 840 Mold Φ3mm 50 26 33 3
L850-01UPNRND No 850 Mold Φ5mm 50 22 10 5
L850-02UPNRND No 850 Mold Φ5mm 50 24 5 5
L850-03UPNRND No 850 Mold Φ5mm 50 24 13 5
L850-04UPNRND No 850 Mold Φ5mm 50 22 20 5
L850-05UPNRND No 850 Mold Φ5mm 50 22 40 5
L850-06L6CU No 850 Mold Φ5mm - - 4*
L850-06UPNRND No 850 Mold Φ5mm 50 22 7 5
L850-09UPNRND No 850 Mold Φ5mm 50 24 15_25 5
L850-33UPNRND No 850 Mold Φ3mm 50 24 15 3
L850-36UPNRND No 850 Mold Φ3mm 50 22 30 3
L850D-01 No 850 Mold Φ5mm 50 26 10 5
L850D-03 No 850 Mold Φ5mm 50 26 11 5
L850D-04 No 850 Mold Φ5mm 50 26 9 5
L850D-06 No 850 Mold Φ5mm 50 26 3 5
L850D-33 No 850 Mold Φ3mm 50 26 16 3
L850D-34 No 850 Mold Φ3mm 50 26 6 3
L850D-36 No 850 Mold Φ3mm 50 26 47 3
L850F-01-55NRND No 850 Mold Φ5mm - - 10
L850F-01UNRND No 850 Mold Φ5mm 50 28 10* 5
L850F-02UNRND No 850 Mold Φ5mm 50 28 8* 5
L850F-03-55NRND No 850 Mold Φ5mm - - 15
L850F-03UNRND No 850 Mold Φ5mm 50 28 10* 5
L850F-04UNRND No 850 Mold Φ5mm 50 28 17* 5
L850F-05UNRND No 850 Mold Φ5mm 50 28 44* 5
L850F-06-55NRND No 850 Mold Φ5mm - - 10
L850F-06UNRND No 850 Mold Φ5mm 50 28 4* 5
L850F-09UNRND No 850 Mold Φ5mm 50 28 10_21* 5
L850F-33UNRND No 850 Mold Φ3mm 50 28 17* 3
L850F-36UNRND No 850 Mold Φ3mm 50 28 32* 3
L870-01UPNRND No 870 Mold Φ5mm 50 28 11 5
L870D-06 No 870 Mold Φ5mm 50 30 3 5
L870D-05 No 870 Mold Φ5mm 50 24 42 5
L870D-04 No 870 Mold Φ5mm 50 30 9 5
L870D-03 No 870 Mold Φ5mm 50 30 11 5
L870-02UPNRND No 870 Mold Φ5mm 50 24 5 5
L870-03UPNRND No 870 Mold Φ5mm 50 22 15 5
L870-04UPNRND No 870 Mold Φ5mm 50 24 18 5
L870-05UPNRND No 870 Mold Φ5mm 50 22 44 5
L870-06UPNRND No 870 Mold Φ5mm 50 24 7 5
L870-09UPNRND No 870 Mold Φ5mm 50 28 10_21* 5
L870-33UPNRND No 870 Mold Φ3mm 50 22 15 3
L870D-33 No 870 Mold Φ3mm 50 30 13 3
L870-36UPNRND No 870 Mold Φ3mm 50 28 30 3
L870F-01UNRND No 870 Mold Φ5mm 50 28 10* 5
L870F-02-55NRND No 870 Mold Φ5mm 50 25 8*
L870F-02UNRND No 870 Mold Φ5mm 50 24 5 5
L870F-03-55NRND No 870 Mold Φ5mm 50 20 15 5
L870F-03UNRND No 870 Mold Φ5mm 50 24 15 5
L870F-04-55NRND No 870 Mold Φ5mm 50 25 22
L870F-04-55NRND No 870 Mold Φ5mm 50 25 22 5
L870F-04UNRND No 870 Mold Φ5mm 50 24 20 5
L870F-05-55NRND No 870 Mold Φ5mm 50 25 44*
L870F-05UNRND No 870 Mold Φ5mm 50 28 44* 5
L870F-06-55NRND No 870 Mold Φ5mm 100 46 10
L870F-06UNRND No 870 Mold Φ5mm 50 24 7 5
L870F-09UNRND No 870 Mold Φ5mm 50 28 10_21* 5
L870F-33UNRND No 870 Mold Φ3mm 50 28 17* 3
L870F-36UNRND No 870 Mold Φ3mm 50 24 30 3
L880-01AUNRND No 880 Mold Φ5mm 50 25 11 5
L880-02AUNRND No 880 Mold Φ5mm 50 25 8 5
L880-03AUNRND No 880 Mold Φ5mm 50 25 10 5
L880-04AUNRND No 880 Mold Φ5mm 50 22 18 5
L880-05AUNRND No 880 Mold Φ5mm 50 25 44* 5
L880-06AUNRND No 880 Mold Φ5mm 50 25 8 5
L880-09AUNRND No 880 Mold Φ5mm 50 25 10_21* 5
L880-33AUNRND No 880 Mold Φ3mm 50 25 19 3
L880-36AUNRND No 880 Mold Φ3mm 50 25 32 3
L890-01AU No 890 Mold Φ5mm 50 15 12 5
L890-02AU No 890 Mold Φ5mm 50 15 10 5
L890-03AU No 890 Mold Φ5mm 50 15 11 5
L890-04AU No 890 Mold Φ5mm 50 15 20 5
L890-05AUNRND No 890 Mold Φ5mm 50 15 44* 5
L890-06AU No 890 Mold Φ5mm 50 15 10 5
L890-09AU No 890 Mold Φ5mm 50 15 10_21* 5
L890-33AU No 890 Mold Φ3mm 50 15 15 3
L890D-36 No 890 Mold Φ3mm 50 25 49 3
L890-36AU No 890 Mold Φ3mm 50 15 30 3
L910-01 No 910 Mold Φ5mm 50 13 9 5
L910-02 No 910 Mold Φ5mm 50 13 3 5
L910-03 No 910 Mold Φ5mm 50 13 10* 5
L910-04 No 910 Mold Φ5mm 50 13 15 5
L910-05NRND No 910 Mold Φ5mm 50 13 44* 5
L910-06 No 910 Mold Φ5mm 50 13 3 5
L910-09 No 910 Mold Φ5mm 50 13 10_21* 5
L910-33 No 910 Mold Φ3mm 50 15 15 3
L910-36 No 910 Mold Φ3mm 50 13 32* 3
L910D-33 No 910 Mold Φ3mm 50 13 15 3
L910D-36 No 910 Mold Φ3mm 50 13 48 3
L940-01AU No 940 Mold Φ5mm 50 15 13 5
L940D-02L6CU No 940 Mold Φ5mm 50 30 3 5
L940-01V No 940 Mold Φ5mm 50 16 11 5
L940-02AU No 940 Mold Φ5mm 50 15 10 5
L940-02V No 940 Mold Φ5mm 50 16 3 5
L940-03AU No 940 Mold Φ5mm 50 15 13 5
L940-03V No 940 Mold Φ5mm 50 16 10* 5
L940-04AU No 940 Mold Φ5mm 50 15 22 5
L940-04V No 940 Mold Φ5mm 50 16 20 5
L940-05AUNRND No 940 Mold Φ5mm 50 15 37 5
L940-05VNRND No 940 Mold Φ5mm 50 16 44* 5
L940-06AU No 940 Mold Φ5mm 50 15 10 5
L940-09AU No 940 Mold Φ5mm 50 15 11_21 5
L940-09V No 940 Mold Φ5mm 50 16 10_21* 5
L940-31-2CNRND No 940 Mold Φ3mm 50 14 52 3
L940D-36 No 940 Mold Φ3mm 50 30 42 3
L940-33AU No 940 Mold Φ3mm 50 15 25 3
L940-33V No 940 Mold Φ3mm 50 16 23 3
L940-34AU No 940 Mold Φ3mm 50 15 16 3
L940-36AU No 940 mold Φ3mm 50 15 37 3
L940-36V No 940 mold Φ3mm 50 15* 37* 3
L940D-01 No 940 Mold Φ5mm 50 30 11 5
L940D-02 No 940 Mold Φ5mm 50 30 3 5
L940D-03 No 940 Mold Φ5mm 50 30 11 5
L940D-04 No 940 Mold Φ5mm 50 30 10 5
L940D-05NRND No 940 Mold Φ5mm 50 25 45 5
L940D-06 No 940 Mold Φ5mm 50 30 3 5
L940D-33 No 940 Mold Φ3mm 50 30 16 3
L940D-34 No 940 Mold Φ3mm 50 25 5 3
L970-01 No 970 Mold Φ5mm 50 7 11 5
L970-02 No 970 Mold Φ5mm 50 7 10 5
L970-03 No 970 Mold Φ5mm 50 7 11 5
L970-04 No 970 Mold Φ5mm 50 7 18 5
L970-05NRND No 970 Mold Φ5mm 50 5.5 40 5
L970-06 No 970 Mold Φ5mm 50 7 9 5
L970-09 No 970 Mold Φ5mm 50 7 10_21* 5
L970-33 No 970 Mold Φ3mm 50 7 22 3
L970D-36 No 970 Mold Φ3mm 50 28 50 3
L970-36 No 970 Mold Φ3mm 50 5.5 30 3
L970D-02 No 970 Mold Φ5mm 50 29 3 5
L970D-03 No 970 Mold Φ5mm 50 28 13 5
L970D-04 No 970 Mold Φ5mm 50 29 11 5
L970D-05NRND No 970 Mold Φ5mm 50 23 45 5
L970D-06 No 970 Mold Φ5mm 50 30 4 5
L970D-33 No 970 Mold Φ3mm 50 30 17 5
L970D-34 No 970 Mold Φ3mm 50 29 - 5
L980D-01 No 980 Mold Φ5mm 50 30 9 5
L980D-02 No 980 Mold Φ5mm 50 30 4 5
L980D-03 No 980 Mold Φ5mm 50 30 12 5
L980D-04 No 980 Mold Φ5mm 50 30 3 5
L980D-06 No 980 Mold Φ5mm 50 30 4 5
L980D-36 No 980 Mold Φ3mm 50 30 50 5

NRND: Not Recommended for New Design

IR & NIR LEDs – High-Efficiency Infrared Emitters (700 nm – 1050 nm)

Infrared (IR) and near-infrared (NIR) LEDs emit light just beyond the red end of the visible spectrum, where the eye’s sensitivity falls off steeply. IR LEDs have been used for decades in everyday devices like TV remote controls (typically around 940 nm), and today they also power advanced systems in security, communications, and sensing. Notably, nearly half of the Sun’s energy reaching Earth is in the infrared – illustrating the abundance and utility of IR light. The CIE divides infrared radiation into three bands: IR-A (near-infrared) from 780 to 1400 nm, which includes most night-vision and biometric illumination; IR-B from 1400 to 3000 nm, used in applications like telecommunications and moisture sensing; and IR-C from 3 µm to 1 mm, the range of thermal imaging. Marubeni’s IR & NIR product line covers 700 to 1050 nm, from the far-red edge into the shorter-wavelength part of IR-A (for 1050 to 1900 nm, see our SWIR LED offerings).

Why Choose Marubeni for Near-Infrared?

High radiant output

Our IR/NIR LEDs deliver exceptional optical power, with some emitters achieving up to 5–6 W of output in compact packages (plenty for long-range floodlights and illuminators). Using advanced chip designs and thermal packaging (such as our ceramic SMBB 5 × 5 mm and EDC 3.5 × 3.5 mm devices), we offer intense infrared illumination from a small footprint.

Tight wavelength binning

We offer standard NIR LEDs at key wavelengths – for example 730 nm (far-red), 780 nm, 810 nm, 850 nm, and 940 nm – each sorted in narrow wavelength bins (typically ±5 nm). This tight binning ensures uniformity and repeatability in sensor designs, especially important for applications like biometrics or structured-light systems that demand a specific IR wavelength.

Scalable thermal solutions

Marubeni provides infrared emitters in formats suitable for both small and large-scale deployments. For board-level and wearable devices, we have low-profile surface-mount LEDs (with heat-spreading substrates) that integrate easily. For high-power requirements, we offer components like TO-66 metal-can arrays and custom multi-LED illuminators, which can handle higher drive currents and dissipate heat efficiently, enabling use as flood lights or long-range IR spotlights. For example, our multi-die IR illuminators in TO-66 cans combine several chips behind an optical window to produce an exceptionally high-intensity beam for surveillance or machine vision.

Applications of IR & NIR LEDs

Security and biometrics

High-power 850 nm and 940 nm LEDs are widely used for CCTV security cameras, covert illuminators, and facial recognition systems, and automatic license plate recognition (ANPR) for traffic monitoring. Our NIR LEDs serve as floodlights that allow night-vision cameras to capture clear images in complete darkness. They are also used in biometric identification like iris scanners and eye-tracking systems (for VR headsets or driver monitoring), providing near-infrared light to track eye movement or authenticate users.

Medical devices & therapy

NIR LEDs play a crucial role in health monitoring and treatment. 940 nm IR emitters, paired with red LEDs, are the basis of pulse oximetry sensors that measure pulse (heart rate) and blood oxygen saturation (SpO2) in wearable devices and hospital monitors. Additionally, arrays of 850 nm and 810 nm LEDs are used in photobiomodulation (near-infrared light therapy) devices and research. Designers qualify LEDs for their application; see the datasheet notes on intended use.

LiDAR and range-finding

Infrared LEDs (often 905 nm or 940 nm) and laser diodes are used in time-of-flight rangefinders, LiDAR sensors, and proximity detectors. Marubeni’s high-efficiency IR chips enable these systems to send out powerful pulses of light and accurately measure distances for applications such as automotive LiDAR and robotics navigation. The eye-safe nature of certain NIR wavelengths allows for their use in consumer electronics (e.g. structured-light 3D cameras in smartphones) as well.

Industrial sorting & sensing

IR and NIR LEDs help automate quality control by detecting material properties invisible to the human eye. For instance, 740–980 nm illumination is used to differentiate plastics or to sense moisture content on production lines (water absorbs specific NIR wavelengths). In food processing, 850 nm LEDs can assist in sorting produce or grains by detecting surface characteristics. Our infrared emitters offer the reliability and fast switching needed for these high-speed machine vision systems.

Environmental & consumer sensors

Infrared LED-based sensor pairs are common in smoke detectors, where an IR LED and photodiode work together to detect airborne particles (smoke) via light scattering. IR proximity sensors are also used in consumer electronics – for instance, helping smartphones detect when they are near your face or enabling touchless gesture controls. Our IR emitters provide reliable, low-noise output for these safety and convenience applications.

Together, these applications demonstrate the versatility of Marubeni’s IR/NIR devices – from enabling safer cities with IR surveillance to advancing healthcare and industry with precise infrared sensing. If your project requires wavelengths above ~1000 nm (such as 1050 nm, 1300 nm, or 1550 nm), please explore our complementary SWIR LED chips for extended infrared coverage. Whatever your infrared illumination needs, Marubeni provides a solution backed by our technical expertise and commitment to quality.

IR & NIR LED FAQ’s

What is NIR LED technology?

NIR LED technology refers to light-emitting diodes that operate in the near-infrared spectrum. The CIE defines near-infrared (IR-A) as 780 to 1400 nm; Marubeni’s NIR LEDs cover 700 to 1050 nm. These LEDs are energy-efficient light sources that can penetrate various materials, making them suitable for applications such as sensing, imaging, and communication.

How do NIR LEDs compare to traditional infrared light sources?

NIR LEDs offer several advantages over traditional infrared light sources. They are more compact, energy-efficient, and have a longer lifespan. Additionally, NIR LEDs can provide better sensitivity and accuracy in applications such as detection and measurement, especially in the near-infrared range.

What are the common applications of NIR LEDs?

NIR LEDs are widely used in various applications, including medical devices for biological detection, industrial sensors for gas and chemical analysis, and in R&D for optical measurement. Their ability to operate in the near-infrared spectrum enables them to perform tasks that visible light cannot, such as penetrating certain materials without causing damage.

What is the wavelength range of NIR LEDs?

Marubeni’s IR & NIR LEDs span 700 to 1050 nm (the CIE’s near-infrared band, IR-A, is 780 to 1400 nm). Commonly used wavelengths include 740nm, 850nm, and 940nm. Each wavelength has its specific applications and advantages based on the conditions and materials being analyzed or illuminated.

Can NIR LEDs be used for biological and chemical detection?

Yes, NIR LEDs are highly effective for biological and chemical detection. Their ability to penetrate tissues and materials without damage allows for non-invasive measurements. This makes them suitable for medical diagnostics, environmental monitoring, and chemical analysis.

What are the advantages of using NIR LEDs in lighting?

NIR LEDs provide several advantages in lighting applications, including lower power consumption, enhanced reliability, and the ability to operate in conditions where visible light may not be effective. They can optimize energy efficiency while providing illumination in specific wavelengths outside most of the eye’s sensitivity.

How do you measure the performance of NIR LEDs?

The performance of NIR LEDs can be measured in terms of output power, efficiency, and wavelength stability. Analytical techniques are used to assess their sensitivity and accuracy in various applications, ensuring they meet the required specifications for detection and measurement tasks.

Are there any safety concerns associated with using NIR LEDs?

LEDs fall within the scope of IEC 62471, the photobiological safety standard for lamps and lamp systems. Marubeni’s handling and use precautions note that its products may fall under Risk Group 2 of IEC 62471 depending on the conditions of use. Avoid looking directly into operating emitters, and follow the datasheet and precautions page.
